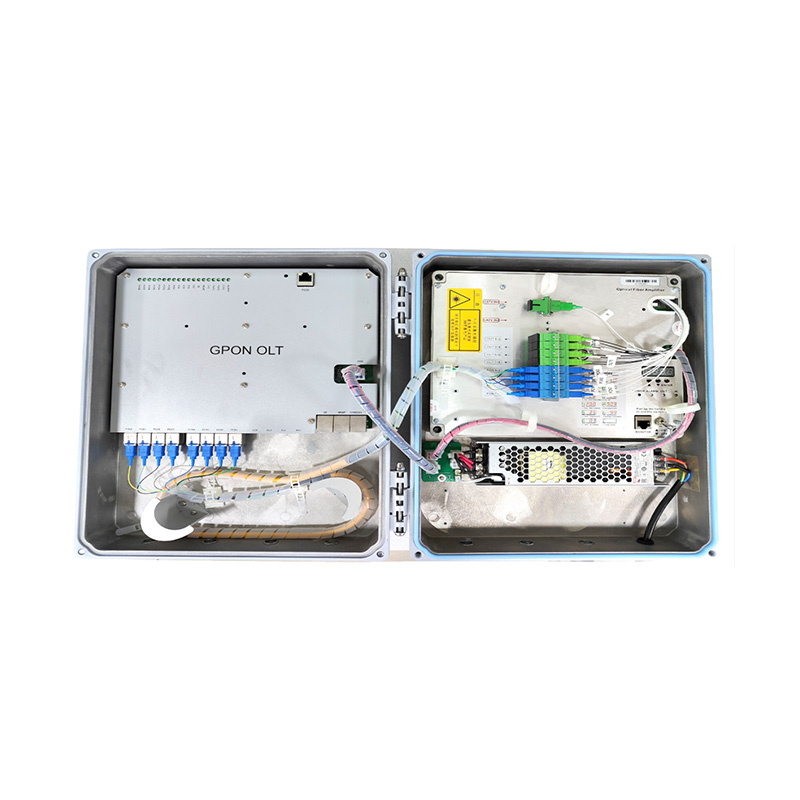

DFL6008-B is an outdoor 8-port GPON OLT device with option independently developed by the company,
with optional built-in EDFA+WDM combiner optical amplifier. The product follows the ITU-T G.984/G.988
technical standard. The product has good openness, high reliability, complete software functions, and flexibility.
Compatible with any brand ONT. The product is suitable for outdoor harsh environments, resistant to high and
low temperature, and can be widely used in operators' outdoor FTTH access, video surveillance, enterprise network,
Internet of Things, etc.
DFL6008-B can be installed on a pole or on a wall, which is convenient for installation and maintenance.
The product adopts the industry's advanced technology, provides customers with efficient GPON solutions,
supports mixed networking of different types of ONUs, which can save a lot of costs.
Product Highlight
● Comply with ITU-T G.984/987/G.988 technical standards, with good connectivity capabilities
● Pon port can support GPON
● Rich Layer 2/3 switching features and Flexible management methods
● Support multiple link redundancy protocols such as FlexLink/STP/RSTP/LACP
● Support RIP、OSPF
● Support ONT power failure alarm
The optical amplifier uses the well-known high-performance erbium-ytterbium co-doped double-clad
fiber and low-noise pump laser. It has reliable circuit design and efficient heat dissipation design. The
maximum total output power of the whole machine can reach+37dBm, supporting up to 16 outputs,
including optical switch, CWDM and RF detection. It is applicable to the amplification and transmission
of 1550nm optical signal in the downstream of FTTH network.
EDFA uses modular and erbium-doped fiber amplification technology. Support laser switch function and
output optical power automatic power control (APC) function. The output optical power is ≥ 20dB, and
the output power of the optical amplifier can be adjusted, which can float down 0-3dB, as the system power
reserve. It is continuously adjustable at 0.1dBm step interval within 0-3dBm.
EDFA characteristics
● 3~+10dBm wide input range.
● The maximum output total power is 20dBm, with 8-port output.
● Excellent noise coefficient and nonlinear index.
● The keys on the internal display screen provide parameter reference and setting
● Cast aluminum waterproof shell, IP67 protection grade, excellent heat dissipation performance.
● The switch power supply with high reliability can adapt to the harsh outdoor environment.
Note: The optical signal of the downstream network is amplified and transmitted in the FTTX network.
One channel of input CATV 1550nm signal, eight channels of input OLT PON 1490nm signal, and eight
channels of output combined optical signal ports are connected to the user terminal ONU through the
ODN network respectively.
Hardware Specification
Item/Model | DFL6008-B |
Interface | 8*GPON Port, 1*10/100/1000M Base-T, 4*1000M Base-X SFP/4*10GE SFP+ |
Exchange Capacity | 103Gbps |
Forwarding Rate | 76.632Mpps |
Memory and Storage | Memory: 2GB, storage: 8GB |
MAC Address | 32K |
Packet Buffer | 72Mbit |
Management Port | Console, MGMT |
PON | Comply with ITU-TG.984/G.988 standard 20KM Physical differential distance，60KM transmission logical distance 1: 128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade |
Environment Temperature | Working Temperature: -20℃～70℃ Storage temperature: -40℃～70℃ |
Environment Humidity | Relative Humidity: 5%~95%, non-condensing |
Environment Friendly | China RoHS, EEE |
Weight | ≤11.5kg |
Power | AC: 100～240V/3A 47/63Hz； |
Power Consumption | ≤65W |
Dimensions (W *H *D) | 370mm*295mm*152mm |
Product Interface
Label | Connector Type | Connector Description |
1G/10G 1-4 | SFP/SFP+ | Connect to external uplink equipment |
GPON 1-8 | SFP+ | GPON service port |
MGMT | RJ45 | The out-band management port |
CONSOLE | RJ45 | The software debug port |
1GE | RJ45 | Connect to external uplink equipment |
The OLT uses a single power supply structure, the switching power supply is built in the box,
The below shows the electrical characteristics of the OLT：
Characteristic | DFL6008-B |
Nominal AC power supply | AC: 100～240V; 50/60Hz |
AC Rated power of power supply | 200W |
Software Specification
Item/Model | DFL6008-B |
PON | Support B+/C+/C++ GPON optical module SN / SN + Password ONU authentication ONU optical power monitoring Rogue ONU detection |
VLAN | Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static Q-in-Q and flexible Q-in-Q |
MAC | 64K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
Ring Network Protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
Port Control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
Port Aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
Mirroring | Support port mirroring Support stream mirroring |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
VLAN | Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static Q-in-Q and flexible Q-in-Q |
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection |
Layer3 Routing | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP, TFTP file upload and download Support SNTP Support LLDP neighbor device discovery protocol Support RFC 3164 Syslog Support Ping and Traceroute |
Technical EDFA+WDM module
Item | Unit | Parameters | Notes | |
Operating Wavelength Range | nm | 1545 ~ 1565 | ||
Input | 1 | |||
Input Optical Power Range | dBm | -3 ~ +10 | ||
Total Output Power | dBm | 20 | ||
Maximum Number of Outlets | 8 | |||
Output Power Stability | dB | ±0.5 | ||
Noise Coefficient | dB | ≤ 5.0 | ||
Return Loss | Input | dB | ≥ 45 | |
Output | dB | ≥ 45 | ||
Pump Leakage Power | Input | dBm | ≤ -30 | |
Output | dBm | ≤ -30 | ||
（C/N） | dB | ≥ 50 | ||
（C/CTB） | dB | ≥ 65 | ||
（C/CSO） | dB | ≥ 65 | ||
Optical Connector Type | SC/APC | |||
Voltage | V | AC220V | ||
Power Consumption | W | ≤ 30 | ||
Operating Temperature Range | ℃ | -20 ~ +55 | ||
Maximum Working Relative Humidity | % | Maximum95% non-condensing | ||
Storage Temperature | ℃ | -30 ~ +70 | ||
Maximum Storage Relative Humidity | % | Maximum95% non-condensing | ||
Dimensions | 340mm (L) x 240mm x (W) x 130mm (H) | |||
Weight | 4kg | |||
The switch provides standardized interfaces, thus facilitating rapid and trouble-free integration into
the existing network infrastructures.
PON Interfaces
The OLT contains 8 GPON interface ports for SFP modules and below table is available.
GPON module list.
1 | SFP GPON OLT -. Wavelength: 1490nm/1310nm / Distance: 20km / Mode: single mode -. Connector: SC/PC / Data rate: 2.488Gbit/s (Up), 1.25Gbit/s (Down) -. Core type: Single Core / Operating Temperature: 0 °C ~ 70 °C |
Network Interfaces
The switch optical interface ports for SFP/SFP+ modules and below table is available SFP/SFP+ module list.
Index | SFP/SFP+ Module Description |
1 | - Wavelength: 850 nm / Distance: 550 m / Mode: multi-mode - Connector: LC / Data rate: 1.25Gbit/s / Core type: Dual Core - Operating Temperature: 0 °C - 70 °C |
2 | -. Wavelength: 1310nm / Distance: 5km / Mode: single-mode -. Connector: LC / Data rate: 1.25Gbit/s / Core type: Dual Core -. Operating Temperature: 0 °C – 70 °C |
3 | - Wavelength: 1310 nm / Distance: 10 km / Mode: single-mode - Connector: LC / Data rate: 1.25 Gbit/s / Core type: Dual Core - Operating Temperature: 0 °C – 70 °C |
4 | - Wavelength: 1310 nm / Distance: 15 km / Mode: single-mode - Connector: LC / Data rate: 1.25 Gbit/s / Core type: Dual Core - Operating Temperature: 0 °C – 70 °C |
5 | - Wavelength: 1310 nm / Distance: 20 km / Mode: single-mode - Connector: LC / Data rate: 1.25 Gbit/s / Core type: Dual Core - Operating Temperature: 0 °C - 70 °C |
6 | - Wavelength: 1310 nm / Distance: 40 km / Mode: single-mode - Connector: LC / Data rate: 1.25 Gbit/s / Core type: Dual Core - Operating Temperature: 0 °C - 70 °C |
7 | - Wavelength: 850nm / Distance: 300m / Mode: Multimode - Connector: LC / Data rate: 10.3125 Gbit/s / Core type: Dual Core - Operating Temperature: 0°C ~ 70 °C - 10GBASE-SR (10G) |
8 | - Wavelength: 850nm / Distance: 300m / Mode: Multimode - Connector: LC / Data rate: 10.3125 Gbit/s / Core type: Dual Core - Operating Temperature: 0°C ~ 70 °C - 1000BASE-SX (1G), 10GBASE-SR (10G） |
9 | - Wavelength: 1310nm / Distance: 10Km / Mode Single mode - Connector: LC / Data rate: 10.3125 Gbit/s / Core type: Dual Core - Operating Temperature: 0°C ~ 70 °C - 10GBASE-LR (10G) |
10 | - Wavelength: 1550nm / Distance: 40Km / Mode: Single mode - Connector: LC / Data rate: 10.3125 Gbit/s / Core type: Dual Core - Operating Temperature: 0°C ~ 70 °C - 10GBASE-ER (10G) |
11 | - Wavelength: 1310nm / Distance: 70Km / Mode: Single mode - Connector: LC / Data rate: 10.3125 Gbit/s / Core type: Dual Core - Operating Temperature: 0°C ~ 70 °C - 10GBASE-ZR (10G） |
Purchase information
Model Number | Description |
DFL6008-B | 8*PON port, 4*1G/10G SFP+,1*GE RJ45 |
EDFA Module | EDFA+WDM module, output 8 * 20dbm. (Optional) |
