1GE GPON ONT (ZTE & Bosa )

Release time:2023-03-07 09:32viewed:times
  • 1GE GPON ONT (ZTE & Bosa )


DFN2100ZB is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network.

DFN2100ZB is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

It is based on ZTE high-performance xPON access chip. The chip supposes three mode:GPON/EPON/P2P, comply with the GPON standard of g.984, g.983, 802.3-2005, CTC GPON equipment technical requirements, have good xPON interoperability compatibility.

It provide one GE auto-adapting Ethernet ports. The 1GE GPON ONT features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the 1GE GPON ONT provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome.






PON Port

1*GPON port, FSAN G.984.2 standard

Downstream Data Rate:2.488Gbps

Upstream Data Rate:1.244Gbps

SC/UPC (option SC/APC ) single mode fiber

Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm

28dB Link loss and  20KM distance with 1:128

Ethernet Port(LAN)

1*GE Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

RJ45, Auto-MDI/MDI-X

Transmission Distance 100 Meter

Power Supply Port

12V DC input


Network Management

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support WEB management



Status monitor, Configuration management, Alarm management, Log management



Plastic casing


External 12V 0.5A DC power supply adapter

Power consumption:<3W


110mm(L) x100mm(W) x28mm (H)




Operating Temperature050

Storage Temperature:-4085

Operating Humidity10%90%(Non-condensing)

Storage Humidity:10%~90%(Non-condensing)


► Fully compatible with ITU-T G.984.1/2/3/4

► Support downlink rate 2.448Gbit/s, uplink rate is 1.244Gbit/s

► Support 32 TCONT, 256 GEMPORT

► Support bidirectional FEC, supports the RS (255, 239) FEC decoding

► Support AES128 encryption and decryption functions with G.984 standard

► Support DBA bandwidth allocation

► Support three layer routing functions

► Support PLOAM, embedded OMCI management with G.984 standard

► Support Dying-Gas detection and reporting

► Support rogue ONU detection

► Support GPON energy saving of G987.3 protocol

► Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ

► Support for flexible flow classification, maximum 520 flow classification rules

► Support link error monitoring and loop monitoring

► Support a variety of multicast forwarding mode, support multicast replication

► Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode

► UNI interface supports STP/RSTP protocol

► Provide QoS guarantees for different priority business through SLA restraining, Policing, queue management scheduling / congestion avoidance, discarding management mode

► Support flow control based on entrance , choose Pause frame reaction pressure

to Packet loss for the business beyond

► Support HQoS function

► Support PPPOE authentication and routes to the client.

► The ONU itself has to do the PPPOE authentication.

► Support TR-069 protocol.

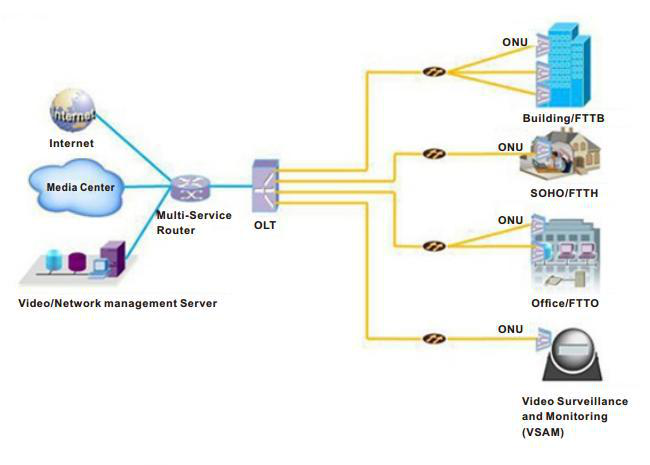

² SolutionFTTH

² BusinessBroadband InternetIPTVSTBVODIP CameraVOIP
