XPON ONU 4GE+POTS+WIFI5 (1200M ) dual band 4*antenna

Release time：2024-02-23 16:19viewed：times

Product Overview

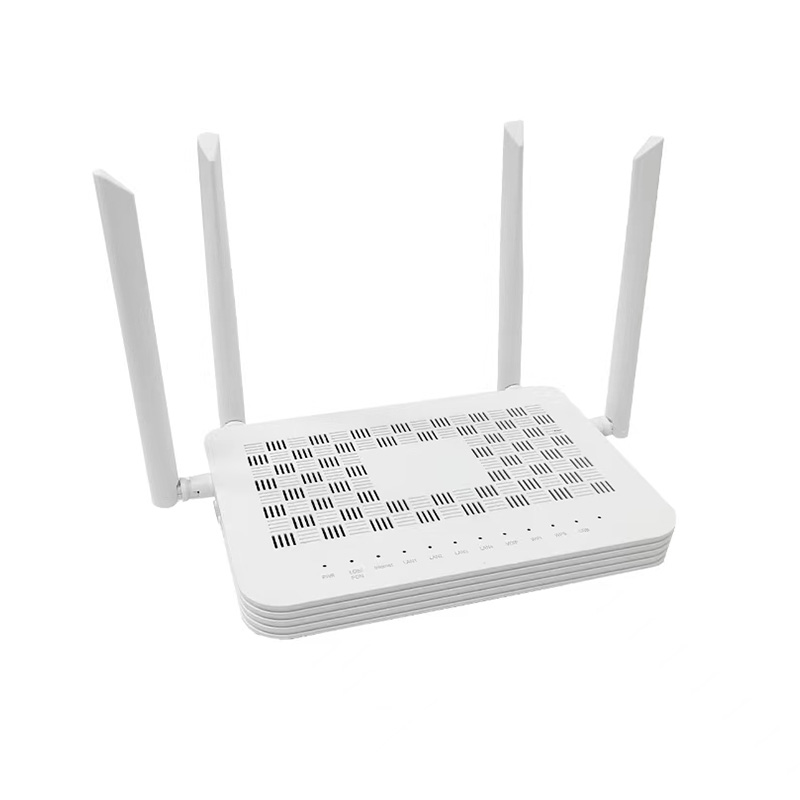

The DFN-X415G is a XPON optical terminal access device that is highly integrated with dual-frequency Wi-Fi5.

It is the end-product of optical fiber for operator, which supports ultra-bandwidth access through G/EPON

upstream technology, and provides users with basic WIFI functions, routing, VOIP, and gigabit Ethernet functions.

The DFN-X415G upstream network ports are G/EPON ports. The downstream user ports include four GE electrical

ports, one USB port, one VOIP port, and WiFi5 WLAN port. Compatible with mainstream G/EPON/EPON OLT, such

as Huawei, ZTE, Fiberhome, BDCOM etc.

Product Highlight

● 1 * XPON interface: SC/UPC （option SC/APC）interface, E/GPON standard

● 1 * Ethernet interface: 10 Mbps / 100 Mbps, 1000 Mbps, RJ - 45, IEEE802.3-2005 standard

● 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard

● 1 * Standard USB 2.0 interface

● Dual-band WIFI5 (2.4G :300Mbps, 5G: 867Mbps) (2 ×2 MIMO (2.4G&5G))

Solution Display

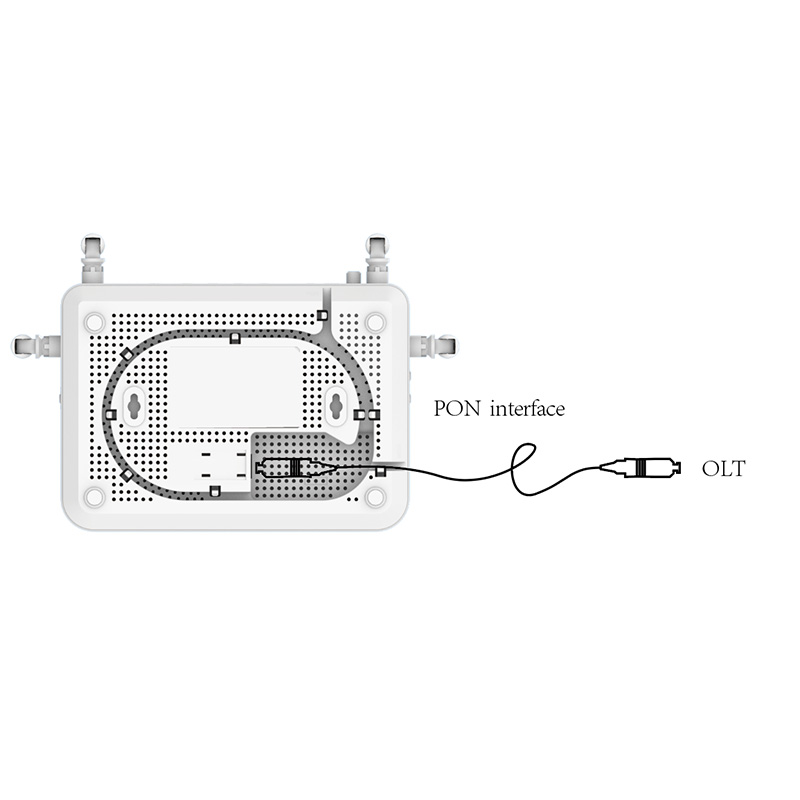

The PON system usually consists of the OLT at the office side, the ONU and the ODN at the user side,

and adopts a point-to-multipoint network structure. The ODN consists of single-mode optical fibers

and passive optical devices such as optical splitters and optical connectors. It provides the optical

transmission medium for the physical connection between the OLT and ONU.Implement FTTX service

deployment application.

Product Specification

Hardware Specifications	Description
Port	4GE+1VOIP+1USB+WIFI5+G/EPON
LED	POWER+PON/LOS +INTERNET +LAN+VOIP + WiFi_2.4G +WiFi_5G+ WPS+USB
Button	POWER + RST +WIFI+WPS
Flash & Memory	Flash: 256MB; Memory: 512MB
Power Supply	12V/1A
Power Consumption	<12W
Environment Standard	Operating Temperature: -5~45℃ Storage Temperature: -20~70℃ Relative Humidity: 5%~95% （non-condensing）
Environment Friendly	RoHs、CE、CCC
Weight	0.35KG
Size	190mm135mm33mm（LWH）
Module type	Class B+, SC/UPC
wavelength	UP 1310nm, Down 1490nm
TX Optical power	0.5~4dbm
RX Optical sensitivity	-28dBm
Transmission distance	0~20km
Transmission rate	EPON: Upstream 1.25Gbps/Downstream 1.25Gbps GPON: Upstream 1.25Gbps/Downstream 2.5Gbps
LAN Interface type	RJ45（10/100/1000Mbps ）
VOIP	RJ11
USB	USB 2.0
WIFI	Dual-band WIFI5 AC1200 (2 ×2 MIMO (2.4G&5G))

WiFi5 (AC1200)

Attributes		Description
WiFi 5	WiFi Protocol	2.4GHz supports 802.11b/g/n 5GHz supports 802.11a/n/ac
	Transmit Power	2.4G 100mW; 5G 200mW
	Antenna Gain	5dBi
	Antenna	Dual-antenna MIMO (2.4G&5G)
	WLAN Penetrate	One reinforced concrete wall or two ordinary brick walls (non-reinforced concrete)
	WLAN Access Capability	32 clients
	Channel	2.4GHz（channel 1-13） 5GHZ（channel 36-161 ）
	WPS	WLAN terminal devices with WPS Push Button function establish connection within 2 minutes
	WLAN Security Function	WPA2-PSK/WPA3-SAE（2.4G only） WPA3-SAE（2.4G only） WPA-PSK/WPA2-PSK WPA2-PSK WPA-PSK Open System & Shared Key Shared Key Open System
	Air Speed	300 Mbps (2.4GHz); 867 Mbps (5GHz)
	Multicast	WMM (Wi-Fi Multi Media)
VOIP	VoIP Port	Call waiting, In-conditional Call Forward, Call Forward if Busy, Call Forward if no reply and three-party calls. G711A/G711U/G729/G722 SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode DTMF

Software Specification

Attributes	Description
XPON Feature	ITU-T G.984.1-4 ITU-T G.988/TR255/TR156 IEEE802.3ah 15 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN/ priority/VEIP gem mapping mode SN/LOID/SN +Password authentication Performance monitoring: eth/Gem port Dying gasp
Ethernet Port	Ethernet port-based VLAN tags and tag removal MAC address learning 10/100/1000Mbps Auto negotiation
L2 Feature	MAC learning (SVL)/aging Support max frame length to 1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094
L3 Feature	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP, DDNS IPv4/IPv6 dual stack, DS-Lite Static, and Default Routes Multiple services on one WAN port
QoS	Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority SP/WRP Service flow classification
Multicast	IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1
Management	OMCI/WEB UI/TR069 Telnet/SSH Management with CLI commands Dual-system software backup and rollback
