AP Wireless 5G CPE

Release time：2023-03-07 11:05viewed：times
  • AP Wireless 5G CPE
  • AP Wireless 5G CPE

 Hardware Specifications

Hardware Specifications

Qualcomm Atheros AR9344 560MHz CPU;

DDR: 64MB; Flash: 8MB; Power Amplifer Chipset: SKY85728-11;

Antenna Specifications

Built-in 2*14dBi Antenna

Wireless Standard

IEEE802.11a/n



RF Parameters

Output Power (Max): 500mW (27dBm);

Receiving Sensitivity (Max): -96dBm;

Frequency:802.11a/n :5.180GHz-5.825GHz





Modulation Technology



DSSS : DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps;

OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、

16-QAM@24Mbps、64-QAM@48/54Mbps;

MIMO-OFDM : MCS 0-15

Transmission Rate

5.8GHz： 300Mbps



Physical Ports

1* 10/100Mbps WAN RJ45 Ethernet Port;

1* 10/100Mbps LAN RJ45 Ethernet Port;

1* POE Output Slide Switch;

1* RESET Button

LED Indicator

8* Indicators:Power/WAN/LAN/WiFi/Signal Strength(1-4)



Power

Power Supply: Support 802.3af/802.3at;

Power Adapter: 48V POE Power Adapter



Power Consumption

≤8W

IP Index

2KV Lightning Protection; IP63

MTBF

>250000H

Installation

Wall-mounted/Pole-mounted

Case

Plastic Case (Imported ABS Material)

Size

Size: 262*80*53mm; Weight: 0.32Kg

Working Environment

Working Temperature: -40 C~55 C;

Storage Temperature: -50 C~75 C;

Working Humidity: 10%~90%RH  Non-condensing;

Storage Humidity: 5%~90%RH   Non-condensing



 Software Specifications

Wireless working mode

AP、Client、Repeater、Router

Network Settings

LAN port connection: static IP, dynamic IP



Wireless Setting

802.11bgn mode or 802.11an mode

Automatic channel selection

Transmit power adjustment

WDS

Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption

SSID broadcast/hidden

Distance setting

Channel bandwidth selection

Advanced Settings: Beacon Time Slot, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, WMM



Management and Maintenance

HTTP WEB management

System log

Time and NTP settings

Wireless Condition Monitoring Program



System Tools

System status: signal strength, noise strength, transmit CCQ, CPU usage, memory usage

Status Monitoring: Throughput/Wireless Client/Interface/ARP

Rate Test

Ping


Functional Feature

► Imported ABS material, simple and stylish appearance;

► Easy to install outdoors, easy to disassemble and use;

►  Outdoor safety protection, suitable for wind, frost, rain and snow;

►  5.8GHz frequency band, no interference signal is continuously stable;

►  Qualcomm AR9344 560MHz industrial grade CPU;

► IP63 protection grade, sun-proof, waterproof and frost-proof;

► 10km high-definition stable transmission;

►  2KV lightning protection;

►  Comply with IEEE802.11a/n standard;

►  300Mbps transmission rate, stable and fast;

►  Built-in 2*14dBi high gain antenna, stable transmission;

►  Easy to install outdoors, easy to disassemble and use;

►  64MB high-speed memory;

►  Support dual network port POE power supply to solve the problem of power supply of  network bridge and camera in monitoring engineering;


Long-Distance transmission bridge

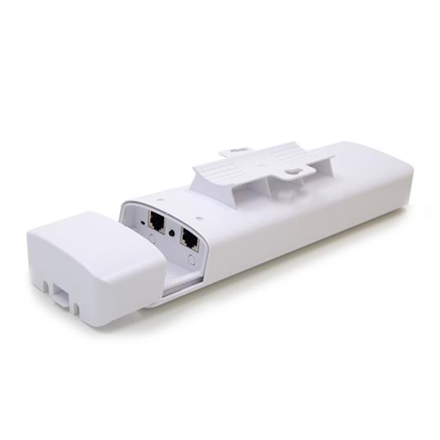

E31B AP Wireless 5G CPE


E31B is a 5.8GHz anti-interference outdoor long-distance transmission bridge,

which is suitable for wireless signal transmission in security monitoring projects.

It is equipped with 14dBi high-gain directional antenna , and supports 10

kilometers of barrier-free transmission. It is suitable for monitoring project transmission in outdoor scenic spots, ports, oil fields, construction sites, etc.


Product performance advantage


► 10 km long distance transmission

E31B adopts Qualcomm chip solution, with stable and reliable performance.

At the same time, it is equipped with a PA power amplifier, and the test transmission distance in an open environment can reach about 11 kilometers, which is suitable for long-distance monitoring and transmission applications.

► 5.8GHz Anti-Jamming

2.4GHz frequency band has a lot of interference and is prone to signal congestion. E31B works in the 5.8GHz frequency band, and has the characteristics of stable operation, high transmission rate, high receiving sensitivity, long coverage distance, and adaptability to various environments.

► Built-in large area high gain antenna E31B has a built-in large-area directional antenna with a maximum gain of 14dBi, which ensures that the bridge transmits high-definition picture quality without delay or freeze, and users can easily do projects.

► Dual network port POE power supply

E31B V2 supports dual network port POE power supply, which can solve the problem of outdoor power supply for bridge equipment and cameras at the same time. Power and data transmission can be realized through a single network cable, which greatly facilitates outdoor projects.
